Rack Shelf Roll Forming Machine For Hydraulic Station Power 5.5kw With Thickness 1.5-2.5mm
Main features
This shelf rack roll forming machine is consisted with auto-de-coiler, guide frame, lever/feeding section, continuous bottom hole punching section, forming section, positioning and cutting section, collection table and electrical control system etc.All kinds of roll forming machine can customized, so just send your profile drawing to me.
Working flow

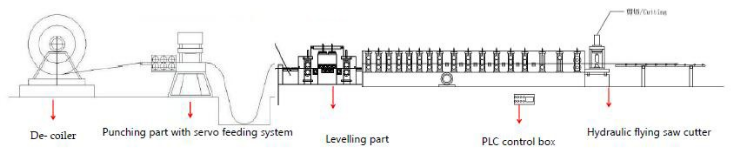

Decoiler --- Servo Feeding --- Punching--- Levelling--- Roll Forming ---- Cutting ---- Run out table
Technical parameters
| Material thickness | 1-2.5mm |
| Diameter of shaft(solid shaft) | 70mm |
| Roller | 22steps |
| Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
| Material of roller | 45# steel polished and coated with chrome HRC55-60° |
| Power of main motor | 22KW |
| Cutting | hydraulic cutting |
| Hydraulic power | 7.5kw |
| Driven | 1 inch chain |
| Voltage | 380V/50Hz/3phase |
| Control system | PLC Frequency Control System with touch screen |
Machine components
Hydraulic De-coiler------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
Punching machine-------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Hydraulic punching device---------------------1set
Production support table-----------------------1set
Machine pics
Profile drawing
Production process
Main features
a.The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
b.All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c.We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d.It is very easy to install the equipment and suitable for producing in the factory.
e. The machine has features of low noise and high efficiency.
(If you have your own special requirements,our machine can be also customized.)
FAQ
1. Does one machine can only produce one size?
Not exactly, it depends on which profile the customer want to produce.
2.Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.
5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.
7.How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.
8.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.
9.Can we arrange shipment?
Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
